技术参数
| 机器系列 Machine series |
直驱大盘开面机系列（LD） | |||||||||||||
| 机器型号 Machine model |

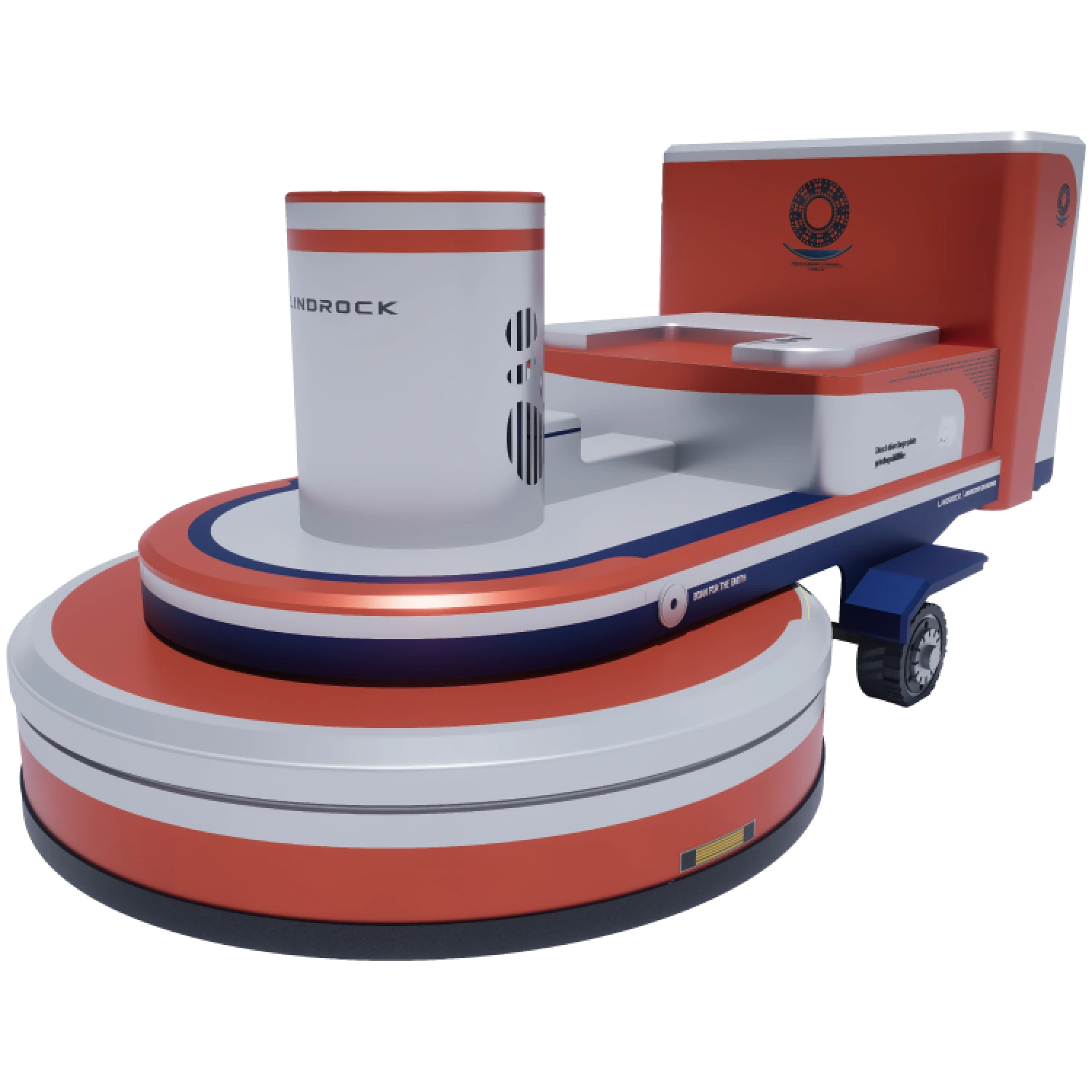

LD 380 | LD 450 | LD 550 | LD 650 | LD 760 | LD 950 | LD 1200 | LD 1400 | LD 1600 | LD 1800 | LD 2200 | LD 2400 | LD 3000 | |
| 电机规格 Motor Specifications |
电源类型 Power source |
有线电源 Corded electric |
有线电源 Corded electric |
有线电源 Corded electric |
有线电源 Corded electric |
有线电源 Corded electric |
有线电源 Corded electric |
有线电源 Corded electric |
有线电源 Corded electric |
有线电源 Corded electric |
有线电源 Corded electric |
有线电源 Corded electric |
有线电源 Corded electric |
有线电源 Corded electric |
| 额定输入功率 Rated input power |
8.1 hp (6 kW) | 10.7 hp (8 kW) | 14.8 hp (11 kW) | 29.5 hp (22 kW) | 40.2 hp (30 kW) | 60.3 hp (45 kW) | 53.6 hp (40 kW) | 67.1 hp (50 kW) | 80.5 hp (60 kW) | 134.1 hp (100 kW) | ||||
| 相数 Phases |
3 ph | 1 ph | 3 ph | 3 ph | 3 ph | 3 ph | 3 ph | 3 ph | 3 ph | 3 ph | 3 ph | |||
| 电压 Voltage |
380 V | 220 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | |||
| 额定电流 Rated current |
9.9 A | 22.7 A | 18 A | 36.2 A | 49.3 A | 80 A | 65.8 A | 82.2 A | 98.7 A | 160 A | ||||
| 频率 Frequency |
50 Hz | 110 Hz | 46.7 Hz | 40 Hz | 40 Hz | 300 Hz | 40 Hz | 40 Hz | 50 Hz | 40 Hz | ||||
| 电源系统 Power system |
3P + N + E | 3P + N + E | 1P + N + E | 3P + N + E | 3P + N + E | 3P + N + E | 3P + N + E | 3P + N + E | 3P + N + E | 3P + N + E | 3P + N + E | 3P + N + E | ||
| 研磨参数 Grinding parameters |
工作宽度 Working width |
15.0 in (380 mm) | 17.7 in (450 mm) | 21.7 in (550 mm) | 25.6 in (650 mm) | 29.9 in (760 mm) | 37.4 in (950 mm) | 47.2 in (1200 mm) | 55.1 in (1400 mm) | 63.0 in (1600 mm) | 70.9 in (1800 mm) | 86.6 in (2200 mm) | 94.5 in (2400 mm) | 118.1 in (3000 mm) |
| 研磨盘数量 Number of grinding discs |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 旋转方向 Direction of rotation |
双向 Both directions |
双向 Both directions |
双向 Both directions |
双向 Both directions |
双向 Both directions |
双向 Both directions |
双向 Both directions |
双向 Both directions |
双向 Both directions |
双向 Both directions |
双向 Both directions |
双向 Both directions |
双向 Both directions |
|
| 研磨压力 Grinding pressure |
||||||||||||||
| 研磨盘最低转速 Minimum speed of grinding disc |
||||||||||||||
| 研磨盘最高转速 Maximum speed of grinding disc |
500 rpm | 350 rpm | 350 rpm | 200 rpm | 200 rpm | 200 rpm | 200 rpm | 200 rpm | 200 rpm | 200 rpm | 200 rpm | |||
| 操作模式 Operation Mode |
电机控制方式 Motor control type |
线控Wired | 线控Wired | 线控Wired / 遥控Remote-controlled | 线控Wired / 遥控Remote-controlled | 线控Wired / 遥控Remote-controlled | 线控Wired / 遥控Remote-controlled | 线控Wired / 遥控Remote-controlled | 线控Wired / 遥控Remote-controlled | 线控Wired / 遥控Remote-controlled | 线控Wired / 遥控Remote-controlled | 线控Wired / 遥控Remote-controlled | 线控Wired / 遥控Remote-controlled | |
| 行走方式 Travel mode |
手动推动Manual push | 手动推动Manual push | 电动驱动Electric drive | 电动驱动Electric drive | 电动驱动Electric drive | 电动驱动Electric drive | 电动驱动Electric drive | 电动驱动Electric drive | 电动驱动Electric drive | 电动驱动Electric drive | 电动驱动Electric drive | 电动驱动Electric drive | ||
| 机器尺寸 Dimensions of the machine |
长度 Length |
43.3 in (1100 mm) | ||||||||||||
| 宽度 Width |
19.7 in (500 mm) | |||||||||||||
| 高度 Height |
47.2 in (1200 mm) | |||||||||||||
| 重量 Weight |
727.5 lbs (330 kg) | |||||||||||||
| 吸灰管直径 Duct collection hose diameter |
2.0 in (50.8 mm) | |||||||||||||
| 运输包装尺寸 Dimensions of the transport packaging |
包装长度 Packaging length (Calc) |
|||||||||||||
| 包装宽度 Packaging width (Calc) |
||||||||||||||
| 包装高度 Packaging height (Calc) |
||||||||||||||
| 包装后总重 Gross weight after packing (Calc) |
||||||||||||||
| 推荐吸灰机 Recommended Dust Vacuum |
吸灰机型号 Dust vacuum model |
|||||||||||||
